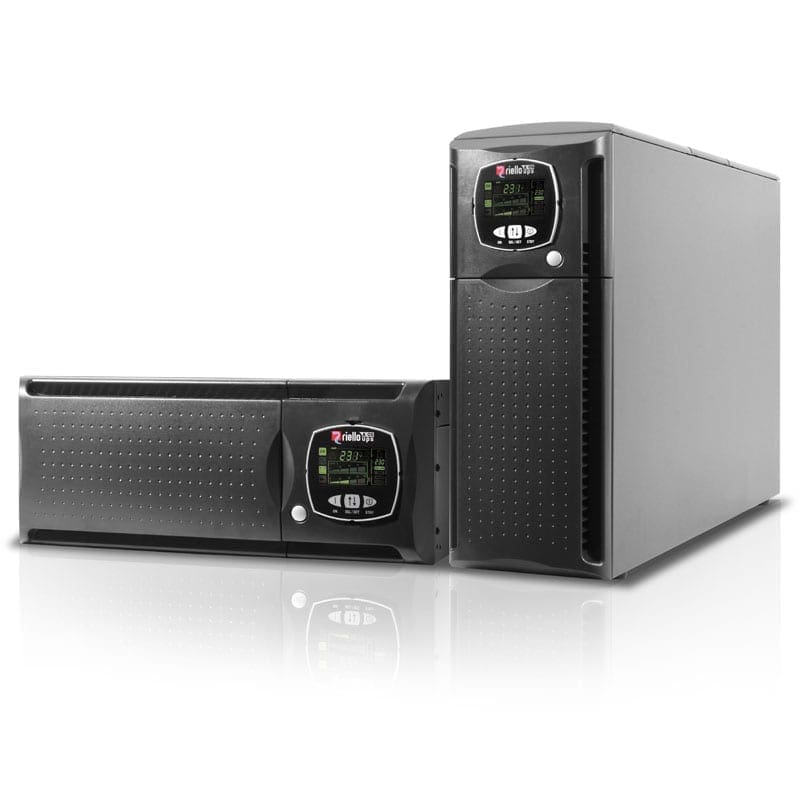

Riello UPS Sentinel Dual (High Power) – SDL 4000

 1.690,50

Riello UPS Sentinel Pro – SDL 4000 – UPS
The flexibility of installation and use (digital display, extractable batteries from the user) and the many communication possibilities, make Sentinel Dual a UPS suitable for many applications, from IT to security.
Model SDL 4000
ENTRANCE
Rated power 4000 VA
Voltage 220-230-240 Vac
Frequency 50/60 Hz ± 5 Hz
Power factor> 0.98
Current distortion ≤7%
BY PASS
Voltage tolerance 180 ÷ 264 Vac (selectable in Economy Mode and Smart Active Mode)
Frequency tolerance Selected frequency ± 5% (user selectable)
EXIT and INVERTER OUTPUT
Rated power 4000 VA
Active power 2400 W
Number of phases 1
Crest factor (Ipicco / Irms) 3: 1
Sinusoidal waveform
Selectable 50/60 Hz frequency
Voltage distortion with distorting load <6%
Voltage distortion with linear load <3%
OVERLOAD TIMES
100% <Load <110% 1 min
Load> 150% 0.5 s
BATTERY
Charging time 4 ÷ 6 h
OTHER CHARACTERISTICS
Color dark gray RAL 7016
Safety Compliance EN 62040-1: 2008; EN 62040-1 / EC: 2009; EN 62040-1 / A1: 2013 and Directive 2014/35 / EU
EMC compliance EN 62040-2 and Directive 2014/30 / EU
Standard equipment 2 10 A cables, 1 IEC-16 A plug, software, 1 serial cable, synoptic release keys
Degree of protection IP20
Protections Overcurrent – short circuit – overvoltage – undervoltage – thermal – excessive battery discharge
Performance Line-Interactive / Smart Active 98%
Noise level (at 1 m) <40 dBA at 1 m
Operating temperature 0 ÷ 40 ° C
Relative humidity <95% without condensation
DATA
Weight 40 kg
Dimensions (h l p) 455x175x520 / 175 (4U) x483x520 mm
